Bridging the Heat Gap with Microwave-Synthesized Graphene and Copper Hybrids

Imagine a world where the plastic casing of your smartphone or the fuselage of a hypersonic aircraft acts as a highly efficient radiator, pulling heat away from critical electronics as effectively as solid metal. For decades, engineers have struggled with a fundamental contradiction in materials science: polymers are lightweight and easy to shape, but they are terrible at conducting heat. To fix this, we usually cram these plastics with conductive fillers like metals or ceramics, but adding too much filler makes the material heavy, brittle, and difficult to manufacture. The secret to solving this is not just adding more conductive material, but ensuring that the heat has a seamless, uninterrupted path to travel through.

The Problem This Research Is Solving

The primary obstacle in creating thermally conductive polymers is interfacial thermal resistance. In physics, heat in non-metallic solids is carried by phonons, which are essentially quantized vibrations of the atomic lattice. When these vibrations encounter a boundary between two different materials—such as the transition from an epoxy resin to a graphene flake—they often scatter. This scattering acts like a bottleneck, trapping heat and preventing it from moving efficiently through the composite.

Even when using high-performance fillers like graphene, which has extraordinary intrinsic thermal conductivity, a new problem arises. Graphene flakes tend to stack or separate within the polymer matrix, creating numerous gaps where phonons are lost. To achieve high thermal conductivity, researchers typically have to increase the filler loading to very high percentages, often exceeding thirty percent by weight. This ruins the mechanical properties of the polymer and increases the overall weight of the component. Wei Zhang, Zhaolong Li, Yanyan Jiao, J N Li, Zhenfei Gao, Wang Yang, Yongfeng Li, and Jin Zhang have addressed this challenge by rethinking how fillers interact with one another within the plastic matrix.

The Key Idea in Plain English

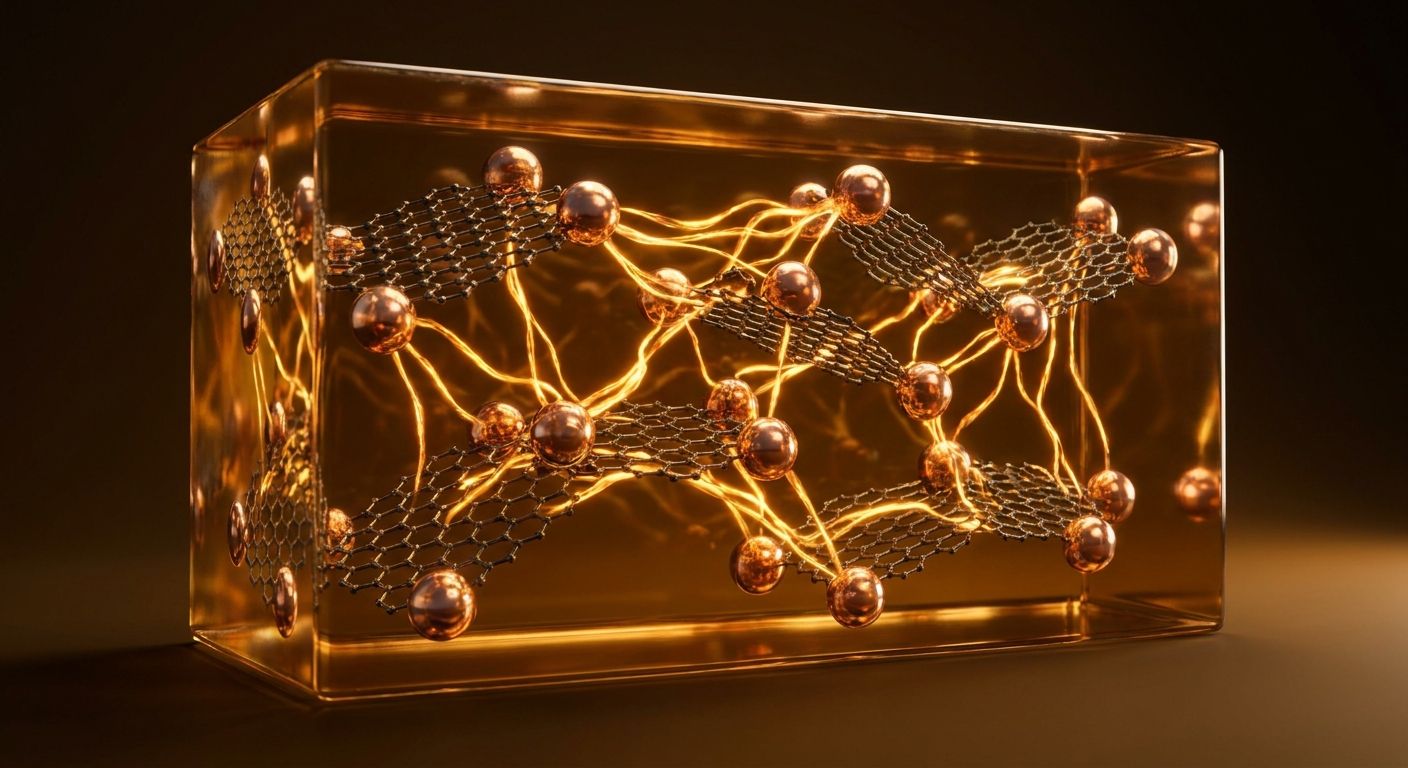

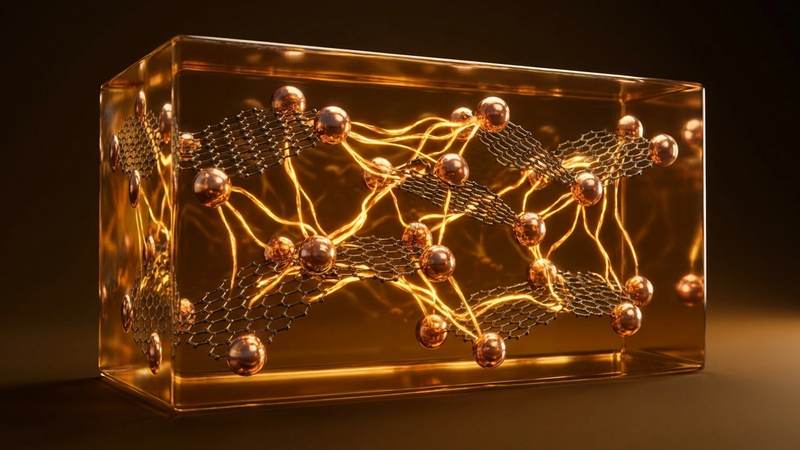

The researchers proposed a hybrid approach that combines graphene oxide and copper nanoparticles to create a bridging architecture. Instead of relying on graphene flakes to touch each other directly, they used copper nanoparticles as tiny metallic bridges that connect the flat surfaces of the graphene. This creates what is known as a point-to-plane bridging structure.

The most innovative part of this approach is the use of microwave-assisted synthesis. Rather than using slow chemical reactions that can take hours or days and often leave behind impurities, they used microwaves to trigger an almost instantaneous reduction of graphene oxide while simultaneously anchoring copper nanoparticles onto the surface. This process ensures that the copper is not just sitting on top of the graphene but is structurally integrated, creating a high-quality interface that allows heat to flow across the boundary with minimal resistance.

How the Graphene-Based System Works

To understand why this system works, we must look at the chemistry of microwave reduced graphene oxide, or mrGO. Standard graphene oxide contains many oxygen-containing functional groups that disrupt the hexagonal carbon lattice, making it a poor thermal conductor. Microwaves provide rapid, volumetric heating and selective interfacial coupling. When subjected to microwave radiation, the precursor materials heat up almost instantly, stripping away oxygen and restoring the sp2 hybridized carbon network of the graphene.

While this reduction is happening, copper nanoparticles are synthesized in situ. Because of the high energy provided by the microwaves, these copper particles bond tightly to the mrGO sheets. This creates a hybrid filler where the graphene provides a wide highway for heat transport, while the copper particles act as connectors.

The cause-and-effect relationship here is critical. In a traditional composite, if two graphene flakes are separated by a thin layer of insulating polymer, the heat must travel through that plastic, which is incredibly slow. However, in this hybrid system, the copper nanoparticles bridge those gaps. Because copper has an extremely high electron and phonon conductivity, it reduces the interfacial thermal resistance between the fillers. The point-to-plane contact means the spherical copper nanoparticle touches a flat plane of graphene, creating a robust physical link that facilitates phonon-mediated heat transport across the network.

What the Researchers Found

The results of this synthesis strategy were significant. By integrating these mrGO-copper hybrid fillers into an epoxy matrix, the team achieved a thermal conductivity of 2.63 W·m−1·K−1 using a filler loading of only five percent by weight. To put this in perspective, most standard epoxies are nearly thermal insulators, and reaching this level of conductivity usually requires far more material.

The researchers calculated an effective thermal conductivity enhancement efficiency, or TCEF, approaching 208 percent. This high efficiency is a direct result of the continuous thermally conductive network created by the bridging architecture. Instead of having isolated islands of conductive material, the copper-graphene hybrids formed a cohesive web throughout the epoxy.

To prove the real-world utility of this material, the team applied it to a light-emitting diode, or LED. LEDs generate significant heat at a concentrated hotspot, which can degrade the device and shorten its lifespan. When the hybrid filler composite was used as a heat sink, it reduced the hotspot temperature of the LED by 18.4 degrees Celsius. This demonstrates that the material does not just look good in a laboratory calculation but effectively manages thermal loads in an active electronic component.

Why the Result Matters

This research is important because it breaks the trade-off between weight and performance. In industries like aerospace or hypersonic vehicle design, every gram of weight added to a craft increases fuel consumption and reduces payload capacity. If engineers can achieve high heat dissipation with only five percent filler loading rather than thirty percent, they can keep the structural benefits of lightweight polymers while gaining the thermal properties of metals.

Furthermore, the microwave-assisted synthesis is a scalable victory. Traditional chemical reduction methods often involve harsh reducing agents like hydrazine, which are toxic and slow. The microwave method is rapid, cleaner, and more energy-efficient. By proving that high-quality interfaces can be created in an ultrashort reaction time, this work suggests a pathway toward industrial-scale production of advanced thermal interface materials.

Limitations and What Still Needs Testing

While the results are impressive, it is important to note that this research represents a fundamental scientific breakthrough rather than a commercially ready product. One primary limitation is the long-term stability of the copper nanoparticles. Copper is prone to oxidation when exposed to air and moisture over time. If the copper bridges oxidize into copper oxide, their thermal conductivity will drop significantly. Future testing needs to determine if the epoxy matrix provides enough encapsulation to prevent this oxidation in real-world environments.

Additionally, while five percent loading is low, the researchers focused primarily on thermal performance. There is a need for more extensive testing regarding the mechanical durability of these composites. Adding metallic and carbon fillers can sometimes alter the coefficient of thermal expansion of the polymer, which might lead to cracking or delamination when the material undergoes extreme temperature cycles, such as those found in hypersonic flight.

Real-World Applications

The most immediate application is in high-power electronics. As CPUs and GPUs become more powerful, they generate more heat in smaller areas. A polymer composite with this bridging architecture could be used for thermal interface materials or integrated heat spreaders that are lighter than traditional copper plates.

In the automotive sector, particularly for electric vehicles, battery management systems require efficient heat dissipation to prevent thermal runaway. Using these hybrid fillers in the potting compounds surrounding battery cells could help distribute heat more evenly and keep the system within safe operating temperatures.

Finally, the mention of hypersonic vehicles highlights a critical aerospace application. At hypersonic speeds, friction with the atmosphere generates immense heat on the vehicle's skin. Lightweight, thermally conductive polymers could be used for internal thermal shielding or to move heat away from sensitive onboard sensors toward external heat sinks.

If You Remember One Thing

The most important takeaway is that adding more conductive filler isn't always the answer; rather, it is about how those fillers are connected. By using microwave energy to bond copper nanoparticles as bridges between graphene sheets, researchers created a point-to-plane network that allows heat to flow effortlessly, achieving high thermal performance with very little material.

FAQ

What exactly is graphene oxide and why does it need to be reduced?
Graphene oxide is a chemically modified version of graphene that contains oxygen atoms. These oxygen atoms break the conductive path of the carbon lattice, making it an insulator. Reduction is the process of removing those oxygen atoms to restore the hexagonal structure, which allows electrons and phonons to move freely again.

How do microwaves help in this specific chemical process?
Microwaves provide a form of rapid, volumetric heating that targets the precursors more efficiently than a standard oven or hot plate. This selective coupling allows the graphene to be reduced and the copper nanoparticles to bond to it almost instantly, which prevents the materials from agglomerating into large, useless clumps.

What is a phonon and why does it matter for heat?
In non-metals, heat isn't carried by flowing electrons but by phonons, which are collective vibrations of atoms in a crystal lattice. If there is a gap or a mismatch between two materials, these vibrations are interrupted, meaning the heat stops moving. The copper bridges in this research act as conduits that keep these vibrations moving smoothly.

Why is 5 percent loading considered a low amount?
In many thermal composite studies, researchers have to add twenty to forty percent of filler by weight to see a significant jump in conductivity. Doing so often makes the plastic brittle and heavy. Achieving high performance at five percent means the material remains mostly polymer in nature, preserving its lightness and flexibility.

Can this be used in home electronics today?
While the science is proven, it is not yet a commercial product. The process must be scaled from laboratory batches to industrial quantities, and the long-term stability of the copper bridges must be verified to ensure they do not oxidize over several years of use.

Conclusion

The work by Wei Zhang and his colleagues represents a sophisticated leap in thermal management materials. By shifting the focus from quantity to architecture, they have demonstrated that a point-to-plane bridging system can overcome the inherent limitations of polymer composites. The synergy between microwave synthesis, graphene's surface area, and copper's conductivity creates a material that is both lightweight and thermally efficient. As we move toward an era of higher power densities in electronics and faster aerospace travel, these types of hybrid nanostructures will be essential in keeping our most advanced technologies from overheating.
